Accessabilty Products
Stairlifts and Lifts

      Simple installation

  • Installs on either side of staircase
  • Mounts to the stairs – not the wall
  • Travel up to 75 feet
  • Anodized extruded aluminum track is factory cut to fit your stairs
  • Track only takes up 7.5” of staircase and chair folds to 11” from wall
  • Wireless remote call/send controls
  • Constant-pressure controls stop the lift the instant you release the control
  • Limit switches automatically shut unit off at the top and bottom of the stairs
  • Safety sensors on foot rest and chassis stop the lift should it contact anything on the stairs
  • Wide, comfortable seat swivels at top landing for safe and easy enter and exit
  • Safety switch prevents lift from running when seat is not in proper position
  • 350 lbs capacity
  • Choice of four colors
  • DC operated system capable of up to 40 trips in the event of a power outage
  • Smooth starts and stops
  • Warranty: 3 years – component parts;
    1 year – Battery; Lifetime – gear rack;
    labor not included
  • Made in America!


Simple installation

  • Installs on either side of staircase
  • Mounts to the stairs - not the wall
  • Travel up to 20 feet
  • Extruded aluminum track is factory cut to fit your stairs
  • Track only takes up 10” of staircase and chair folds to 14” from wall
  • Unit-controls mount on either armrest
  • Foot or finger-activated call controls for wall or floor mounting at top and bottom of stairs or optional wall-mounted                                    call/send controls
  • Constant-pressure controls stop the lift the instant you release the control
  • Limit switches automatically shut unit off at the top and bottom of the stairs
  • Footrest safety sensors stop the lift should it contact anything on the stairs
  • Wide, comfortable seat swivels 90° toward landing at each level for safe and easy enter and exit
  • Safety switch prevents lift from running when seat is not in proper position
  • 300 lbs capacity: aircraft cable rated for 4,200 lbs
  • Choice of vinyl or leather upholstries in three colors
  • Operates on standard household current, 115 VAC, 15 AMP minimum grounded circuit
  • Smooth starts and stops
  • Warranty: 3/5 years (parts/powertrain) labor not included
  • Made in America!



    Simple installation

  • Installs on either side of staircase
  • Mounts to the stairs - not the wall
  • Travel up to 20 feet
  • Extruded aluminum track is factory cut to fit your stairs
  • Constant-pressure pendant controls stop the lift the instant you release the control
  • Choice of 2 hand activated call controls (24 volt) or wall-mounted call-send controls
  • Limit switches automatically shut unit off at the top and bottom of the stairs
  • Wide, comfortable seat with a top height of 20” and a bottom seat height of 23”
  • Seat swivels 180° toward landing at top level for safe and easy enter and exit
  • Safety switch prevents lift from running when seat is not in proper position
  • 500 lbs capacity: aircraft cable rated for 4,200 lbs
  • Choice of vinyl or leather upholstries in three colors
  • Operates on standard household current, 115 VAC, 15 AMP minimum grounded circuit
  • Smooth starts and stops
  • Warranty: 2/5 years (parts/powertrain) labor not included
  • Made in America!

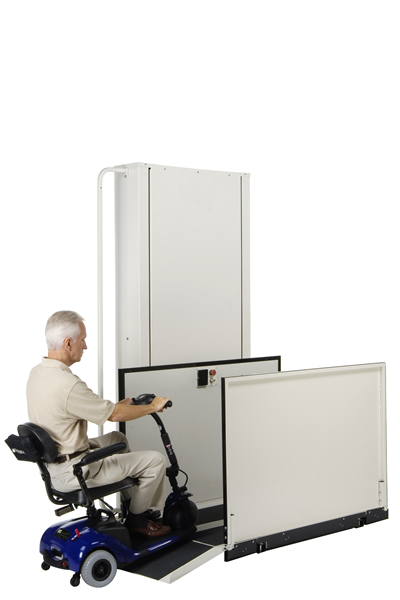

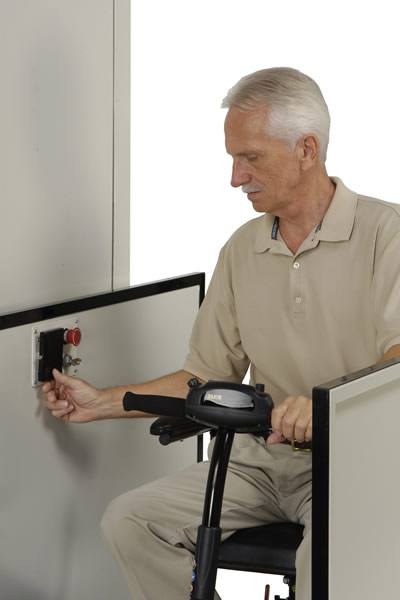

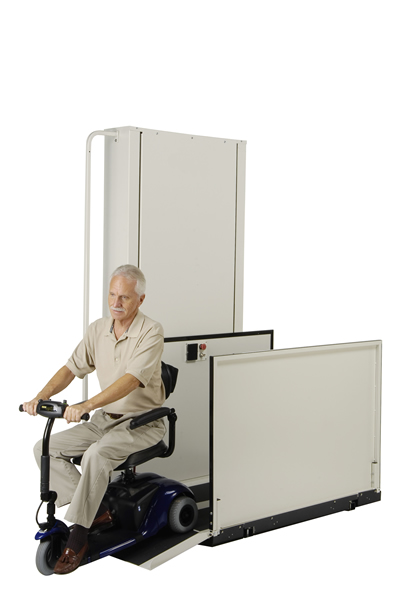

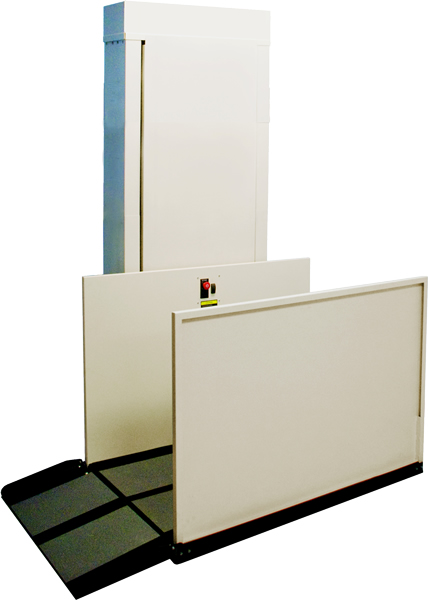

    Hercules Commercial Vertical Platform Lift   Driving In  Operating Controls

  • Lifting Capacity 600 lb
    Standard Lift Height 28"
    Maximum Lift Height 72"
    Portable No
    Arrives Assembled Yes
    Drive System Acme Screw Drive with Backup Nut
    Optional Drive Systems None Available
    Battery Powered Option Yes
    Constant Pressure Platform Control Yes
    Emergency Stop Platform Control None Available
    Alarm Button None Available
    Keyed Platform Control None Available
    Call-Send Controls Optional
    Optional Call-Send Controls Call Only
    Platform Type Solid
    Platform Size 34" x 48" (Usable Space)
    Optional Platform Sizes 34" x 54" (Usable Space)
    Platform Configuration Straight-Thru Access
    Optional Platform Configurations Adjacent Access
    Upper Landing Gate Optional
    Upper Access Ramp None Available
    Lower Access Ramp Automatic Folding
    Grab Rail None Available
    Guard Panel Standard
    Maximum Stops 2
